Marine

Superior comfort and increased performance for yachts, racing vessels, submarines, and other high end marine applications.

Superior
Passenger Comfort

DTI's passive damping solutions are specifically designed to reduce interior sound levels and enhance comfort for passengers and crew.

Lightweight
Performance

Our damping systems use space-age composite materials to provide optimal performance at the lightest possible weight, saving fuel and costs.

Equipment &
Instrumentation Protection

DTI's solutions control resonant vibration, which can cause problems with sensitive navigation and communication instruments.

CASE STUDY: Marine Hull

The customer contacted DTI regarding attenuation of noise and vibration associated with resonance response of hull structure associated with luxury yachts as they traverse the water. Wave impingement excites resonances of hull plating (i.e. the panel structure) which generates unwanted noise and vibration.

The frequency content of the hull resonance response varies depending on the hull geometry, substrate material, and substrate thickness.

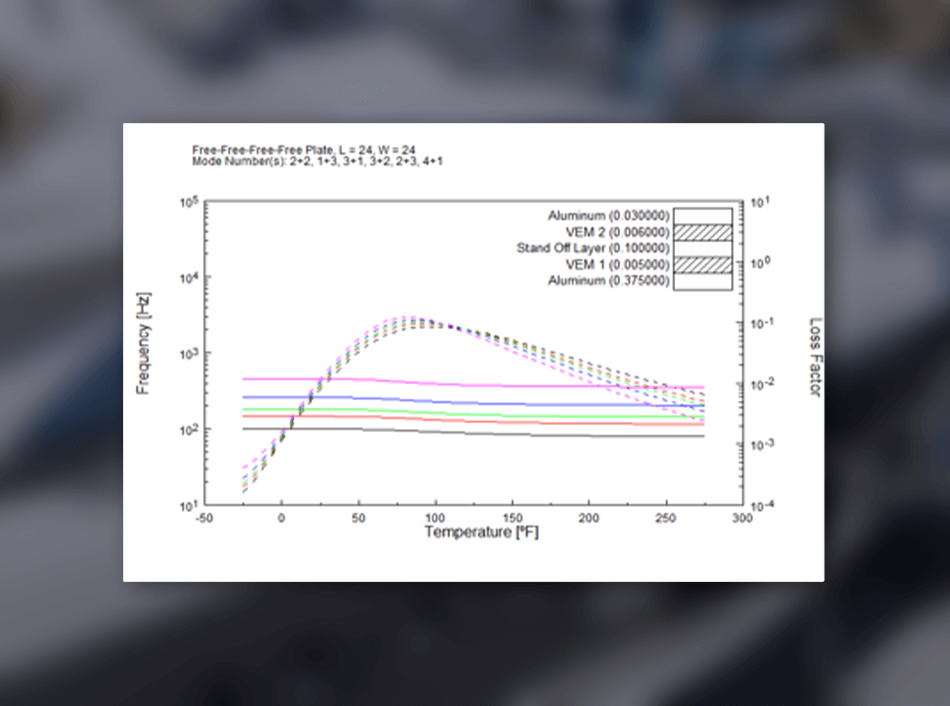

DTI configured a simple closed-form solution FEA Model of the aluminum hull panel test article. A DTI Stand-Off Damping System (SODS) was configured and optimized for the application.

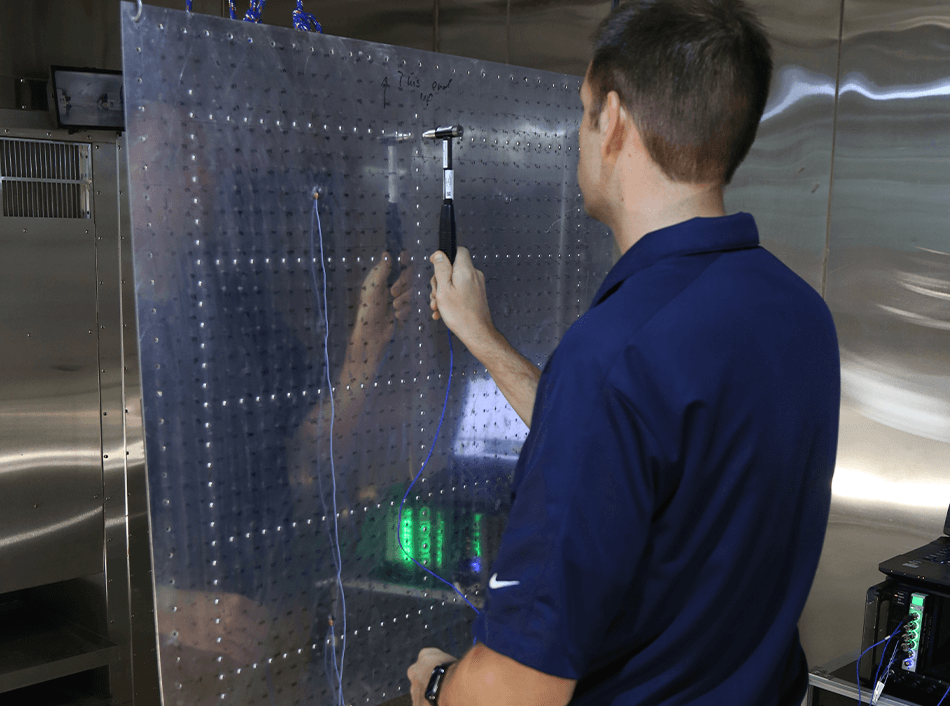

Prototype hardware was constructed and tested. The Stand-Off Damping System delivered large attenuation (about a factor of 50.0) for the resonance response of the aluminum hull panel test article, despite the substantial thickness of the aluminum panel substrate (3/8”).
